Description

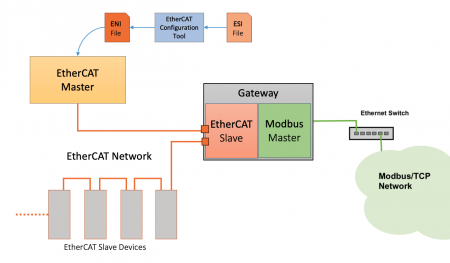

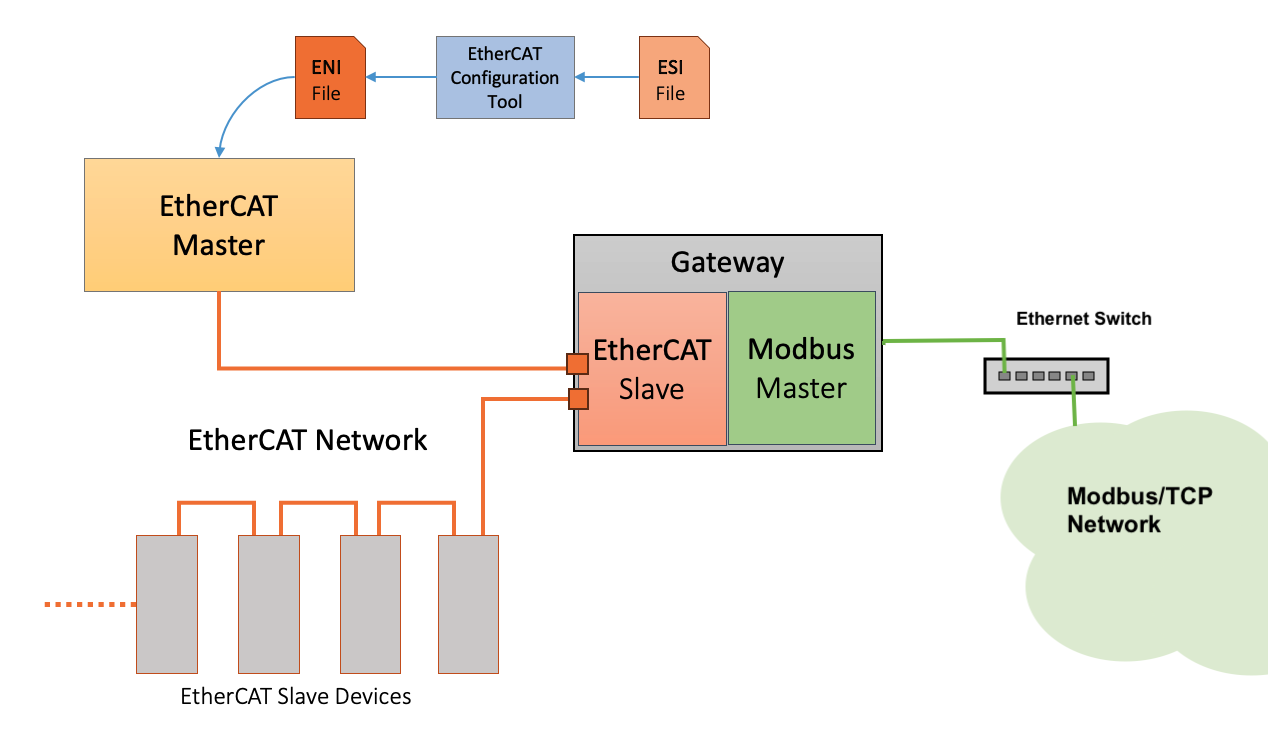

The Gateway unit seamlessly converts Modbus-TCP registers into EtherCAT objects for distribution as real-time process data. Powered by AMD ZYNQ SoC and EtherCAT IP-Core, it offers high-speed Ethernet (up to 1Gbps) and flexible configuration of Modbus registers for efficient data exchange. Discover more today!
Customize the Gateway to fit your application with our engineering services, or take control with our development kit for self-customization.

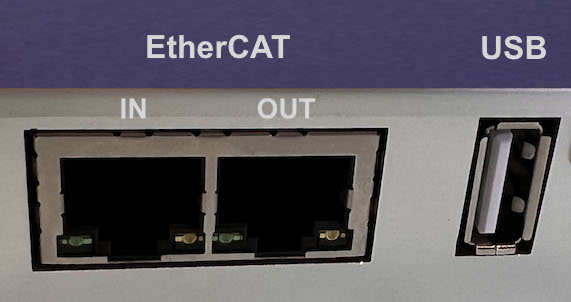

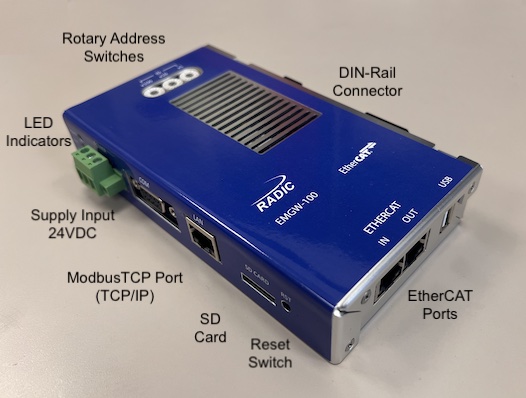

Ethernet Ports:
Two 100Mbps Ethernet ports are dedicated for EtherCAT (IN and OUT).
One Gigabit Ethernet port is used for Modbus-TCP.

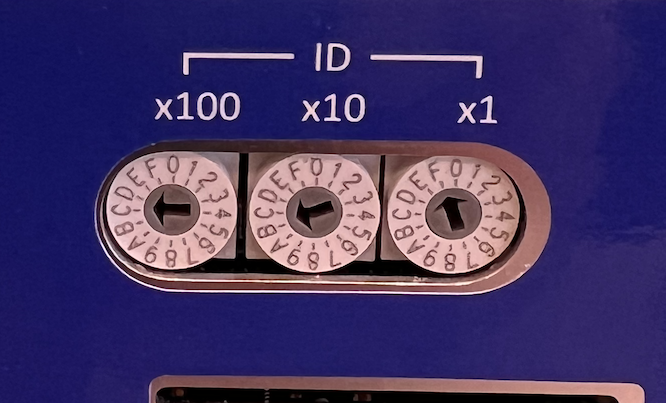

Address Switches:
Supporting Explicit Device ID, the unit is equipped with 3 hex rotary address switches.
LED Indicators:
- POWER LED: Solid green when 24VDC is applied.
- RUN LED: Operates per ETG specifications
- USER LED: User defined
Power Supply:
- +24VDC +/10%

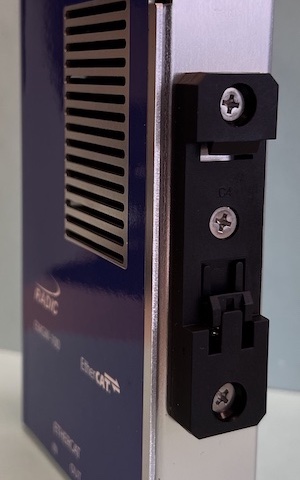

DIN-Rail Connector
- The unit features a DIN-rail mounting connector on the back side.
